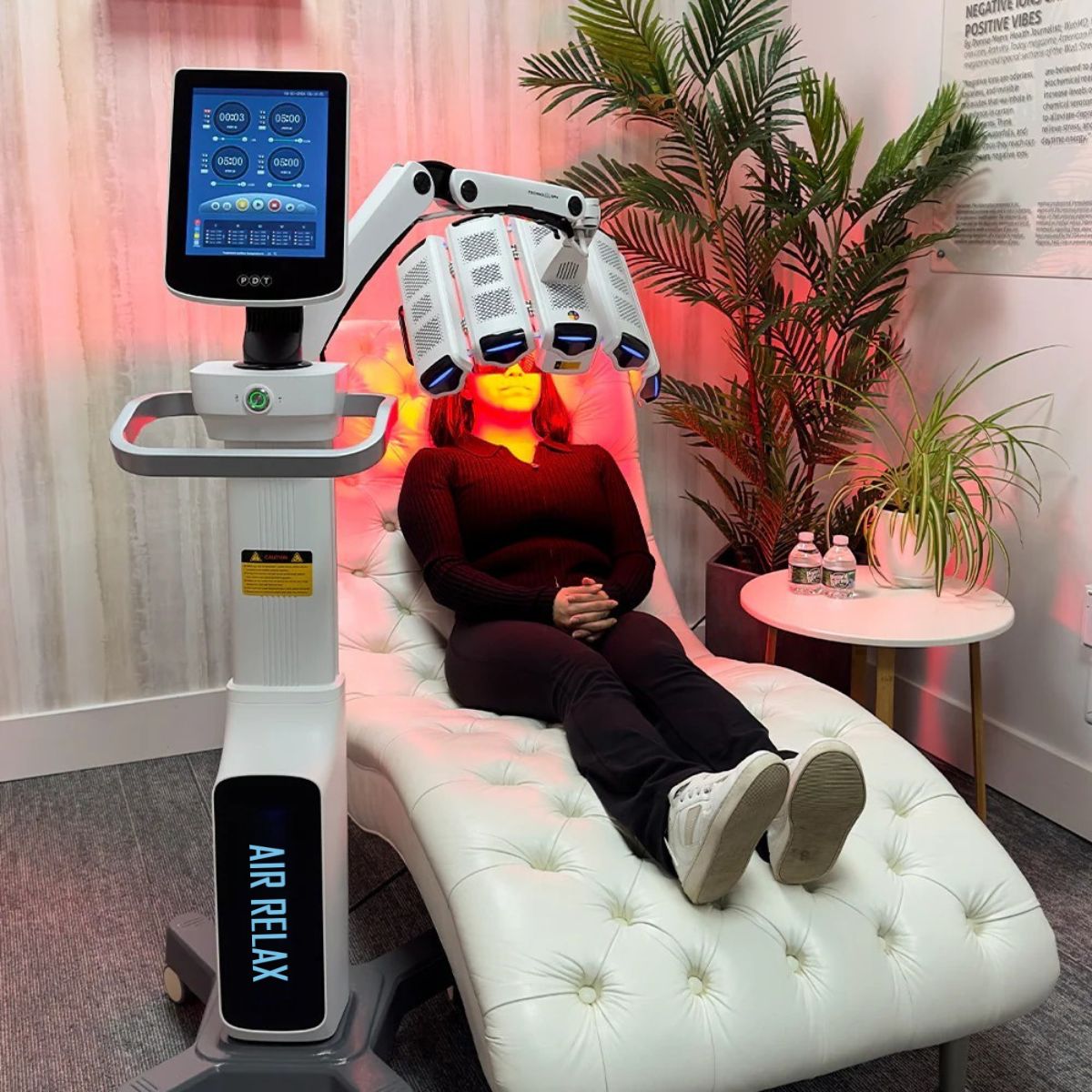

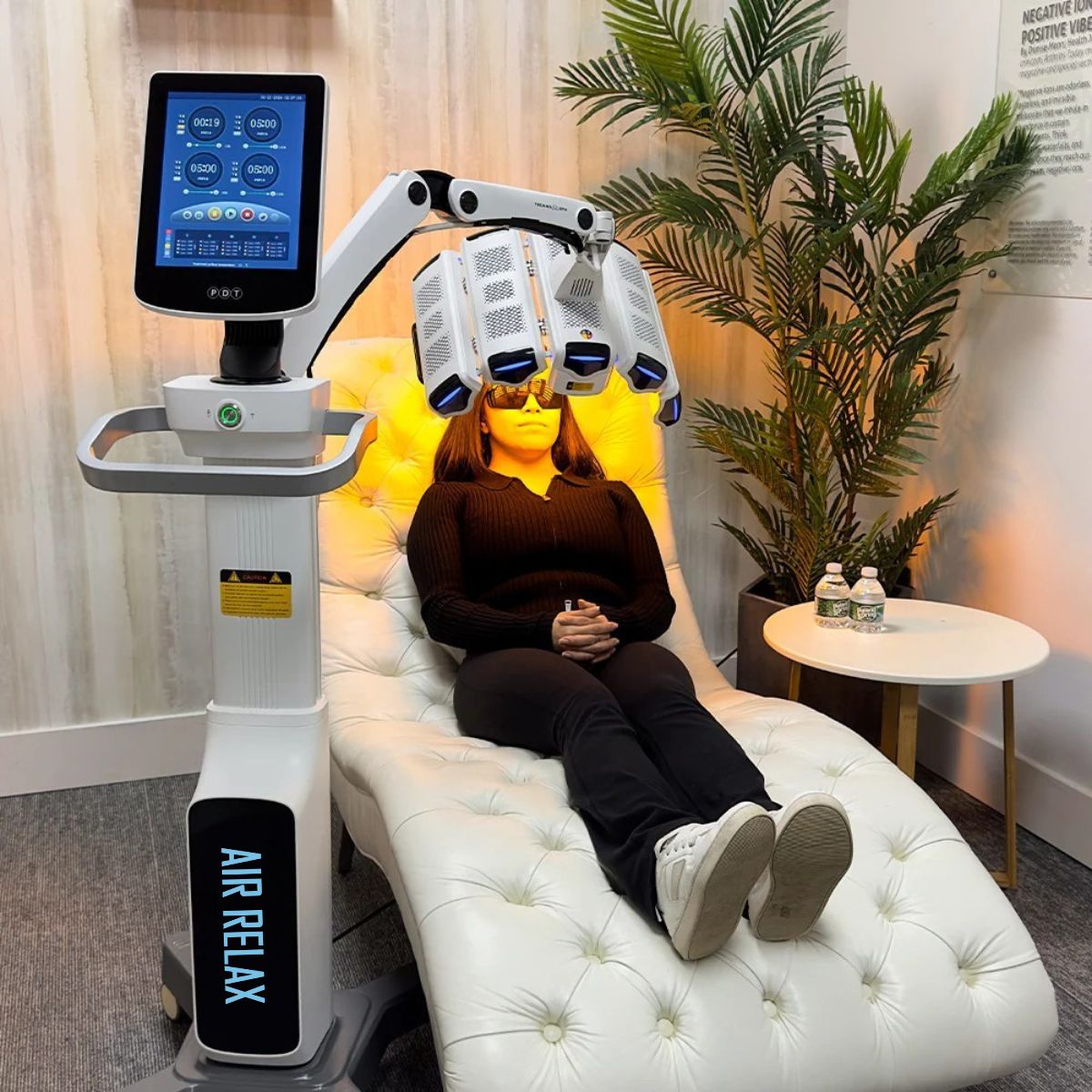

Quad-Wave Photodynamic Therapy

The Air Relax Quad-Wave MD delivers clinical-grade photodynamic therapy (PDT) using four proven wavelengths: Blue, Yellow, Red, and Near Infrared. Together they target skin renewal, muscle recovery, and deep cellular rejuvenation across multiple tissue layers. Equipped with more than 1,400 high-intensity LEDs and five adjustable treatment panels for full-body coverage, it matches the performance of leading systems while offering exceptional value. Certified under CE, FDA, and ISO 13485 medical standards, it features precise wavelength control, customizable treatment programs, and integrated cooling for consistent, comfortable sessions. Medically certified, durable, and powerful, the Quad-Wave MD redefines medical-grade LED therapy for clinics, spas, and wellness centers.

€12.950,00

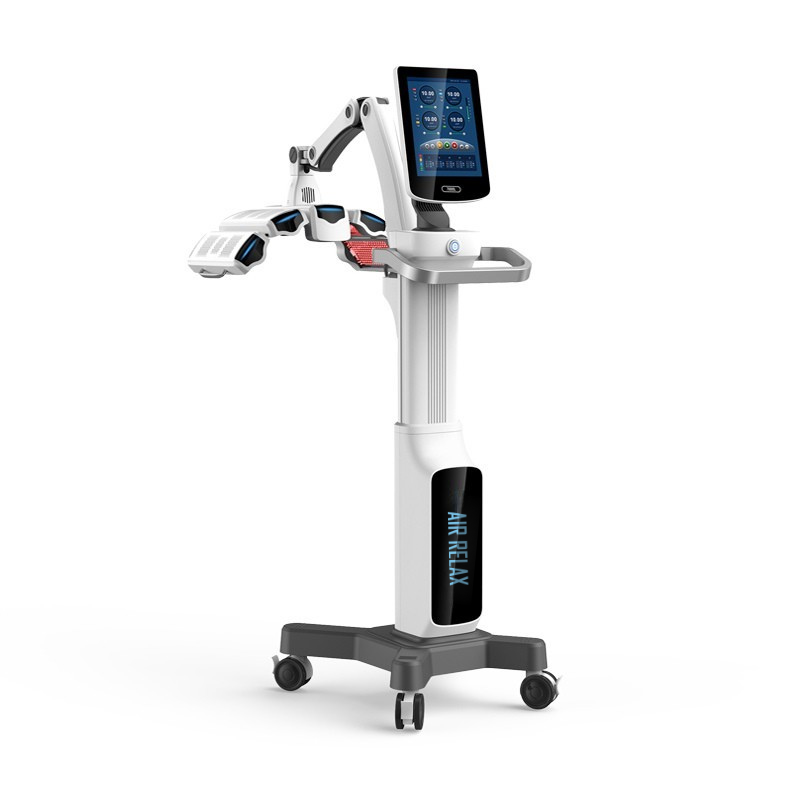

AR Quad Wave MD — Medical-Grade 4-Spectrum LED Phototherapy System

Certified medical-grade LED system compliant with CE, FDA 510(k), and ISO 13485 standards
Four clinically validated wavelengths: Blue (415–465 nm), Yellow (~590 nm), Red (630–650 nm), and Near-Infrared (810–850 nm)
Delivers up to 40 mW/cm² optical irradiance for fast, high-efficacy results

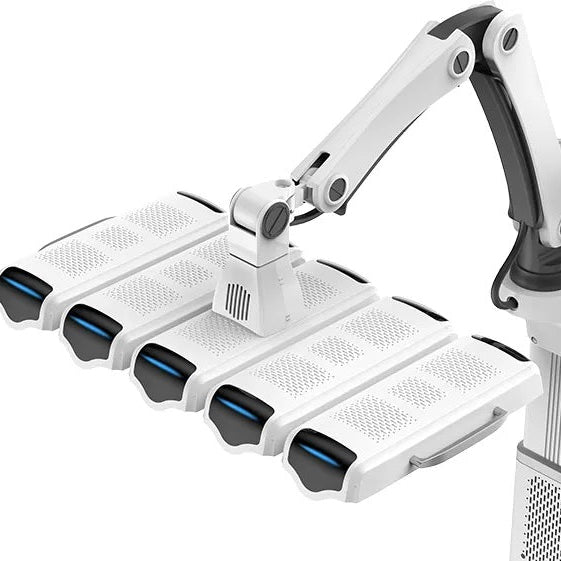

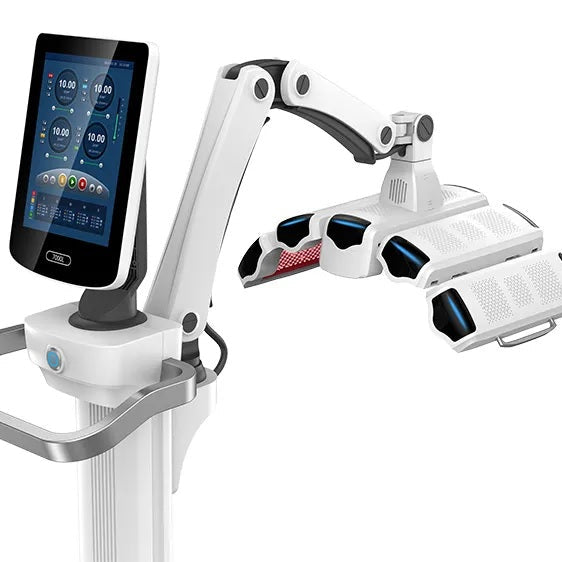

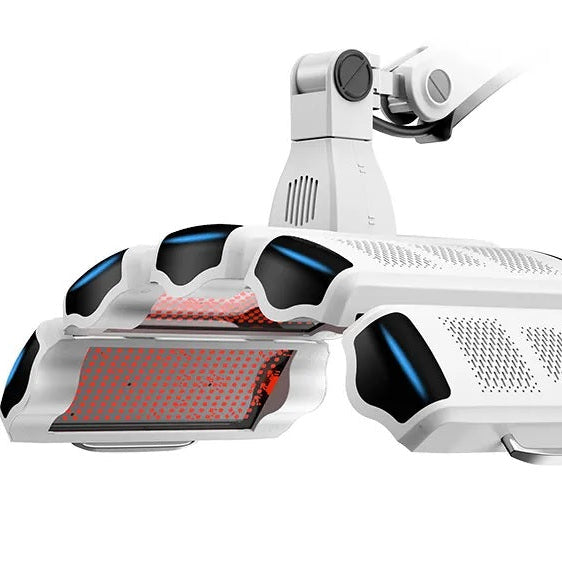

Five large, articulated LED panels for full-face, scalp, and upper-body treatment coverage

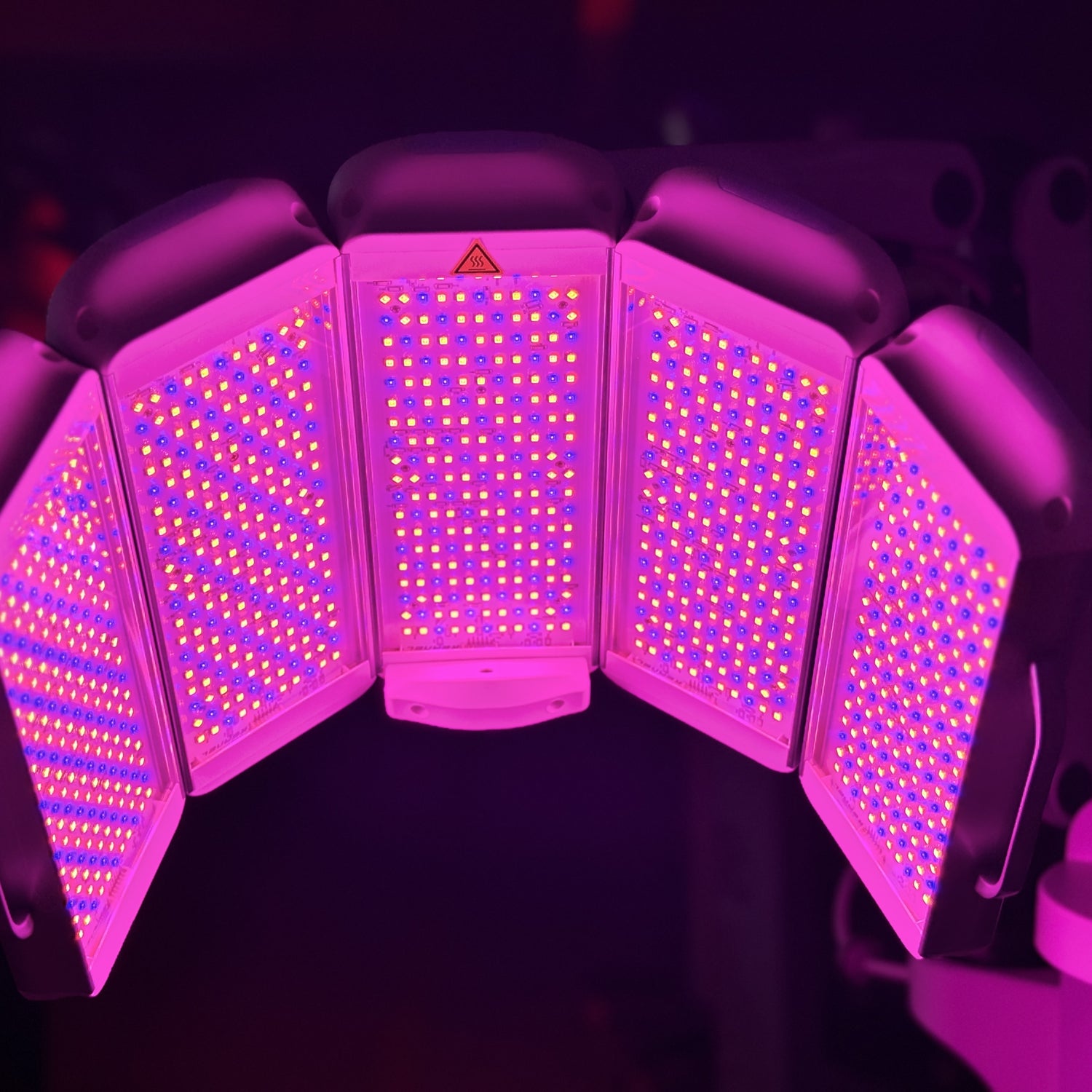

Over 1,400 precision-focused LEDs ensuring even, consistent light distribution
Supports single or multi-wavelength operation for custom therapy programs
Adjustable pulse frequency (1–10,000 Hz) and intensity (1–100%) for all wavelengths
Stable, flicker-free light output with integrated smart cooling and long LED lifespan (≥ 80,000 hours)
Quiet operation (< 50 dB) with reinforced aluminum frame and smooth hydraulic height adjustment

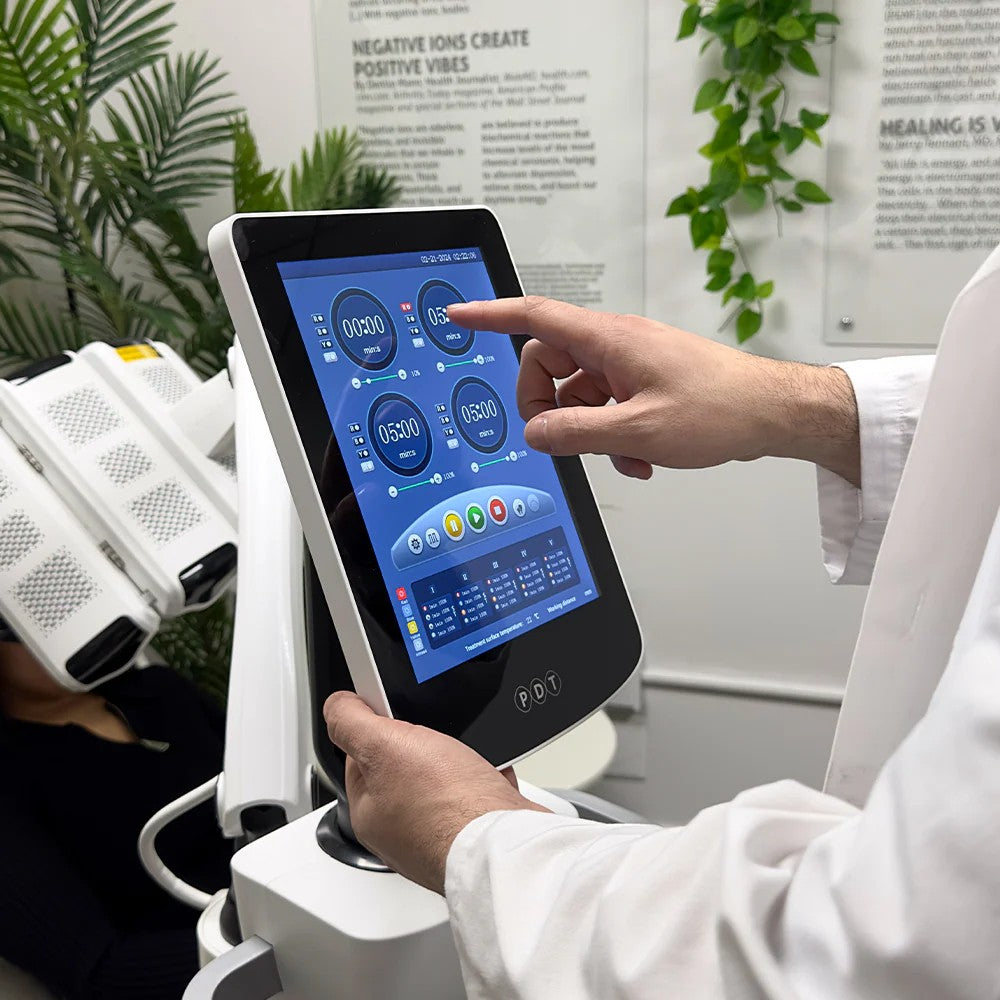

Full-color touchscreen interface with preset and manual control modes
Built-in treatment timer, safety sensor, and auto-shutoff protection
Ideal for skin rejuvenation, acne therapy, inflammation reduction, pain relief, and wound healing
Medical-grade performance
Designed for daily clinical use in dermatology, physiotherapy, med-spa, and recovery environments
Includes full accessory kit, user manual, professional installation guidance, and after-sales support

AR Quad Wave MD — Clinical & Aesthetic Applications

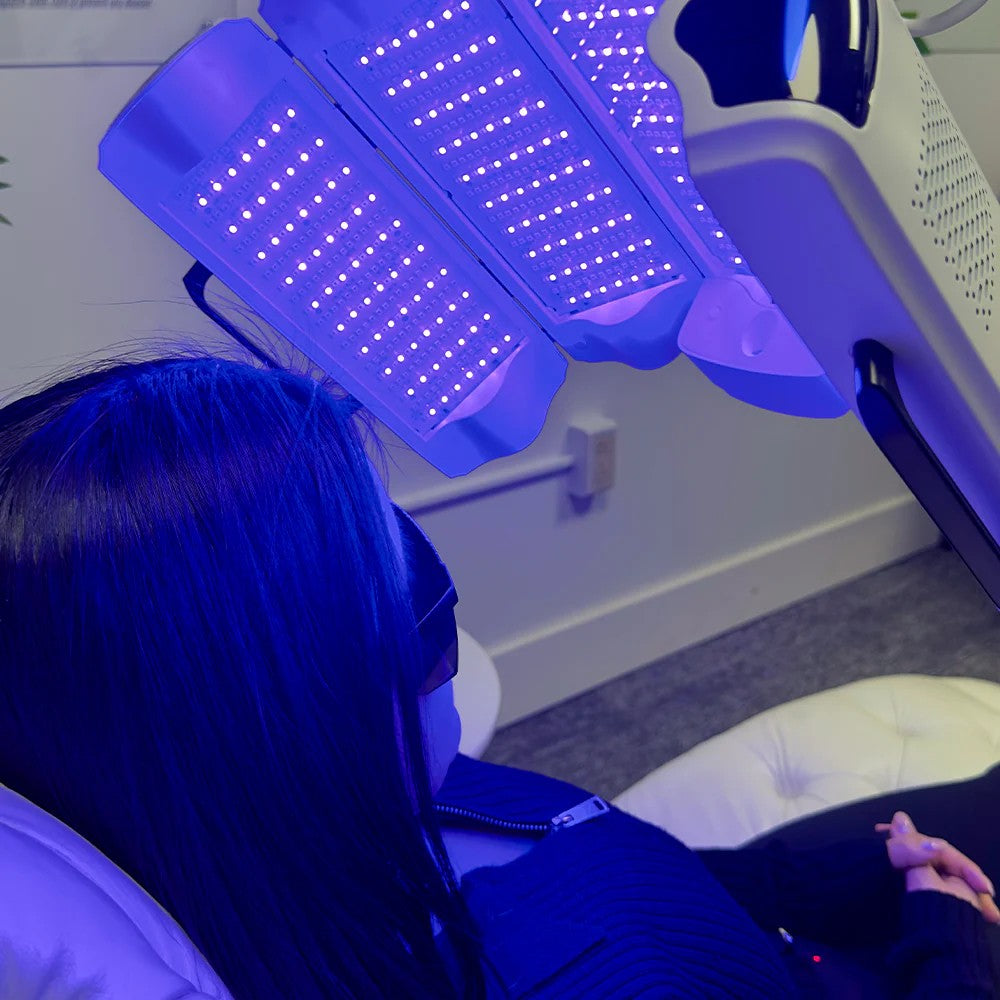

Blue (415–465 nm): Antibacterial; effective against acne and surface inflammation

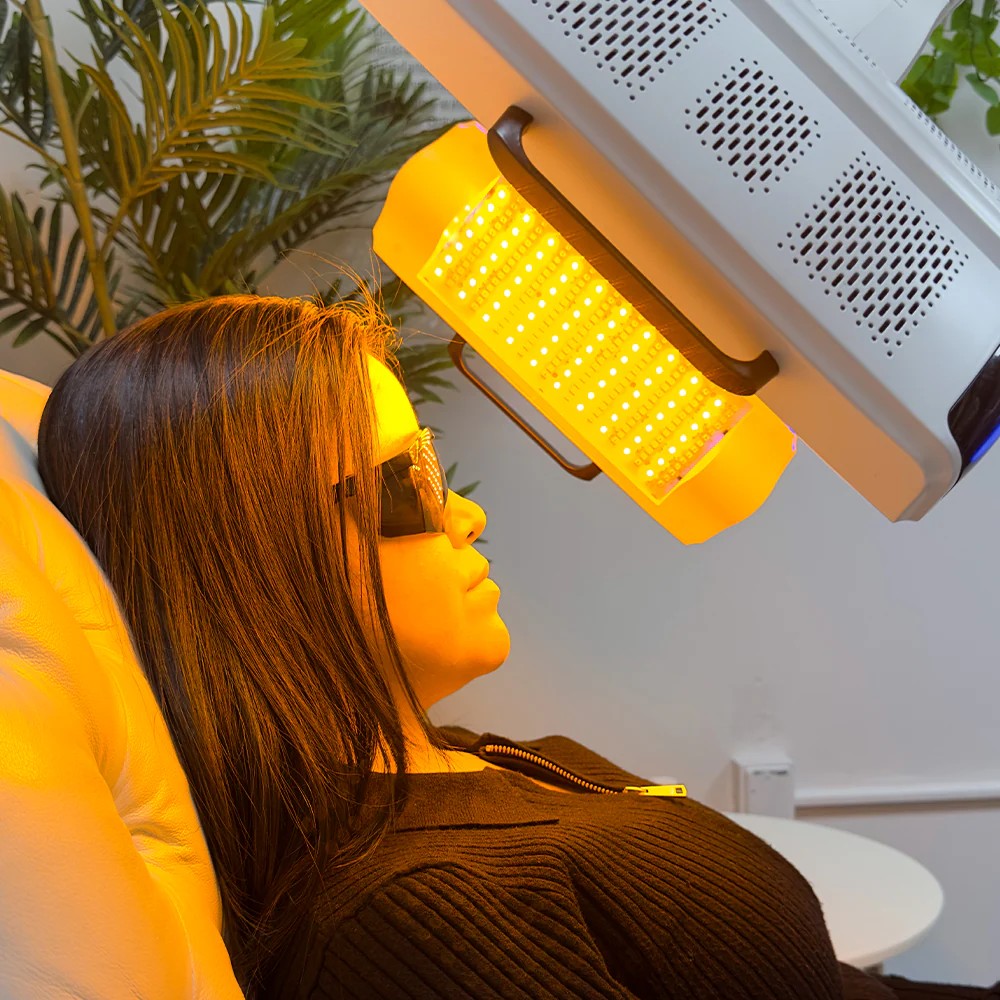

Yellow (~590 nm): Brightens complexion, reduces redness, improves lymphatic flow

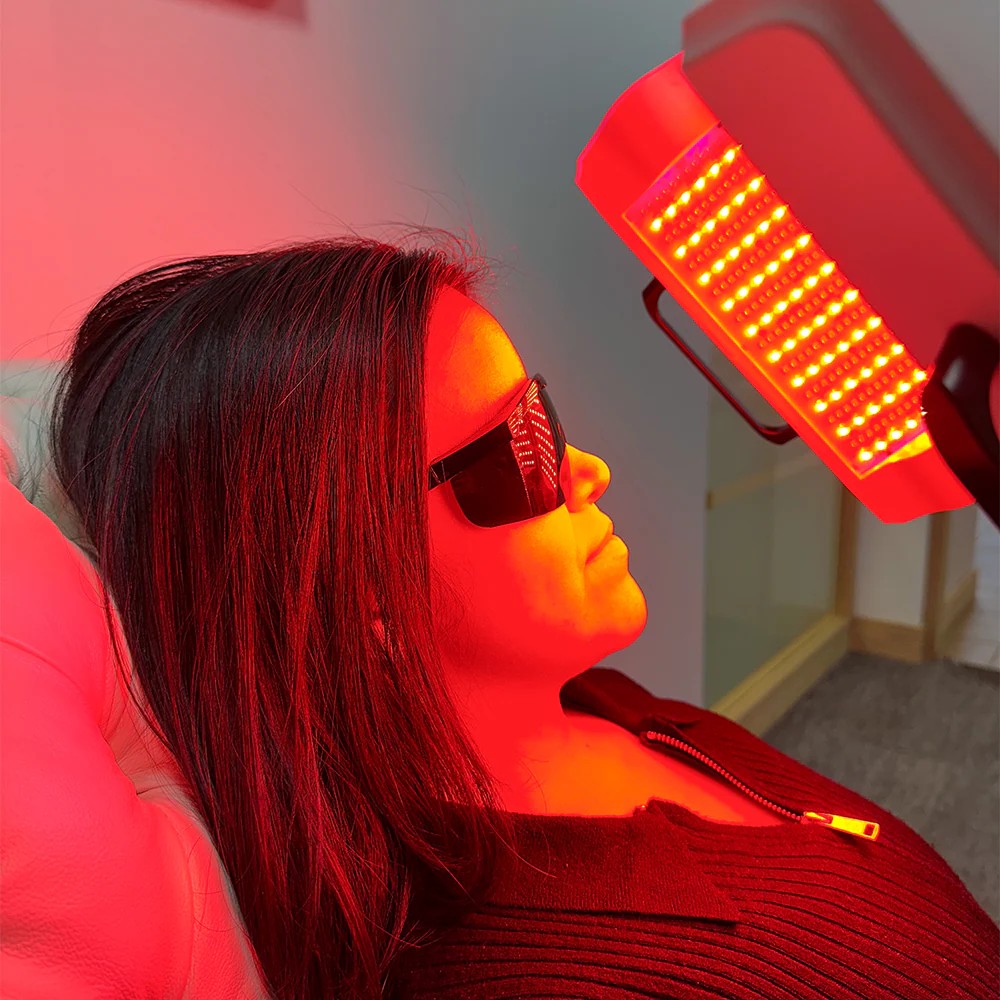

Red (630–650 nm): Stimulates collagen, firms skin, accelerates tissue regeneration
Near-Infrared (810–850 nm): Penetrates deep layers to boost circulation, reduce pain, and enhance cellular energy (ATP)
Simultaneous four-spectrum operation enables advanced rejuvenation and recovery in one session
Supports protocols for anti-aging, acne control, scar repair, inflammation management, and post-procedure healing

Why Choose the AR Quad Wave MD

Certified Medical-Grade Performance: Meets international standards for safety and therapeutic efficacy
Superior Coverage: Five adjustable LED panels deliver even full-body illumination without heat or discomfort
Precision Engineering: High-efficiency optics and cooling ensure stable output during extended use
Professional Versatility: Equally suited for aesthetic, clinical, or rehabilitation environments
Outstanding Value: Comparable results to leading systems at a significantly lower investment
Peace of Mind: Backed by expert customer support, warranty coverage, and CE/FDA documentation

Quad Wave MD Light Therapy Benefits

Also see RED LIGHT THERAPY GUIDE below for treatment recommendations

Focus Area	Primary Benefit
Skin Rejuvenation	Stimulates collagen and elastin production for smoother, firmer, and more radiant skin
Anti-Aging	Reduces fine lines, wrinkles, and uneven skin tone through cellular renewal
Acne & Blemish Control	Blue light eliminates acne-causing bacteria while red light soothes inflammation
Inflammation Reduction	Red and near-infrared light reduce oxidative stress and calm inflammatory responses
Wound & Scar Healing	Accelerates tissue regeneration and improves scar texture and color
Pigmentation & Redness	Yellow and red light balance melanin activity and reduce vascular redness
Pain Relief & Muscle Recovery	Near-infrared light penetrates deep into tissue to reduce pain and support muscle repair
Post-Procedure Recovery	Calms irritation, reduces downtime, and enhances results after cosmetic or dermatologic treatments
Circulation & Lymphatic Flow	Improves microcirculation and detoxification for healthier skin and faster recovery
Hair Regrowth Support	Red light energizes follicles and enhances scalp circulation to encourage growth
Rosacea & Sensitive Skin	Yellow and red light reduce redness, strengthen capillaries, and soothe sensitive skin
Chronic Skin Conditions	Helps manage psoriasis, eczema, and dermatitis by restoring balance to skin cells
Wellness & Energy	Increases mitochondrial ATP production to boost cellular energy and vitality
Mood & Cognitive Support	Promotes serotonin production, reduces fatigue, and improves mental clarity
Detoxification & Lymphatic Drainage	Encourages natural detox pathways and skin oxygenation
Post-Surgery Support	Reduces bruising, swelling, and inflammation to enhance recovery outcomes
Professional Spa Enhancement	Complements facials, peels, and microneedling to maximize treatment efficacy

Specification	Details
Device Type	Medical-grade LED phototherapy system with four therapeutic wavelengths
Total LED Panels	5 adjustable full-coverage treatment heads
Total LEDs	Approximately 1,400 high-intensity diodes
Irradiance	Up to 140 mW/cm² (measured output)
Wavelengths	Blue (415–465nm), Yellow (~590nm), Red (630–650nm), Near-Infrared (810–850nm)
Output Modes	Single, dual, or quad wavelength operation (simultaneous or independent)
Pulse Frequency	1–10,000Hz adjustable per wavelength
Dimming	1%–100% adjustable brightness for each wavelength
Panel Adjustment	Multi-axis rotation for full-face, scalp, and upper-body positioning
Cooling	Active smart-cooling system for consistent output and LED longevity
Noise Level	≤ 50 dB (quiet operation)
Control	Full-color touchscreen interface with manual and preset programs
Timer	1–30 minutes adjustable with automatic shut-off
Certifications	CE, FDA 510(k), ISO 13485, MDSAP
Lifespan	80,000 hours
Construction	High-strength aluminum frame with hydraulic height adjustment
Mobility	Heavy-duty base with locking caster wheels
Dimensions	145 × 70 × 160 cm
Weight	Approx. 45 kg
Voltage	110V–240V (auto switching), 50/60Hz
Power	400–500W
Safety	Overheat protection, auto shut-off, current regulation
Session Duration	10–30 minutes (adjustable)
Recommended Use	Skin rejuvenation, acne control, pain relief, inflammation reduction, wound healing, post-treatment recovery
Certifications	CE, FDA 510(k), ISO 13485, MDSAP
Warranty	2 years full system warranty + lifetime support
Price	€12,950 (excluding VAT, includes delivery and setup assistance)

Payment Terms	Details
Initial Payment	50% of the total AR Quad Wave MD price (€12,950) upon order confirmation
Monthly Instalments	Remaining 50% divided into equal payments over 12 or 24 months
Interest Rate	0% — no finance charges or hidden costs
Included in Price	Delivery, setup assistance, operational training, and a 2-year warranty
Eligibility	Available for approved clinics, wellness studios, recovery centers, and professional buyers
No Hidden Fees	Simple and transparent — no administrative or setup charges
Next Step	Request a personalized quotation and finance plan — Contact us today

00:00:00:00

🎁🎄✨ FREE €699 BLACK FRIDAY GIFT ✨🎄🎁

VALUE €699 🎁

Air Relax PLUS 3.0 Recovery System

+ Free Courier Shipping

+ Pay No Taxes

+ 2 Years Warranty

Have a question?

✨ AR Quad Wave MD — The Next Generation of Clinical LED Therapy ✨

The Air Relax Quad-Wave MD represents the evolution of professional LED photodynamic therapy (PDT) — combining four therapeutic wavelengths, a five-panel modular design, and medical-grade certification. Built for clinics, recovery centers, and aesthetic professionals, it offers higher irradiance, greater coverage, and superior engineering at a significantly lower total cost than comparable systems. See how it compares below.

Feature	AR Quad Wave MD	Other LED Systems
Wavelengths	Blue (415–465nm), Yellow (~590nm), Red (630–650nm), Near-IR (810–850nm)	Red & Near-IR only
Total LED Panels	5 adjustable full-coverage panels	3-4 panels
Total LEDs	≈ 1,400 high-output medical diodes	≈ 1,200–1,400 diodes
Irradiance	Up to 140 mW/cm²	50-150 mW/cm² typical
Pulsing Frequency	1–10,000Hz adjustable	Fixed or limited pulse control
Intensity Control	1–100% dimming per wavelength	Limited global brightness control
Cooling System	Active smart cooling for consistent power	Passive air cooling
Panel Adjustment	Multi-axis rotation for full-body, face, and scalp	Limited angle adjustment
Control Interface	Touchscreen with programmable presets	Basic push-button or timer control
Certifications	CE, FDA 510(k), ISO 13485, MDSAP	CE or basic ISO only
Cooling Fan Noise	≤ 50 dB (quiet operation)	60–65 dB (average)
Construction	High-strength aluminum frame with hydraulic lift	Plastic or fixed-frame design
Lifespan	80,000 hours	50,000 hours
Warranty	2 years full coverage + lifetime tech support	1 year typical
Typical Applications	Skin rejuvenation, acne, pain relief, inflammation, wound healing, post-procedure recovery	General facial treatments
Energy Efficiency	Optimized LED drive circuit with smart cooling	Standard efficiency
Mobility	Locking casters for easy repositioning	Fixed base or stand
Maintenance	Low — no bulb replacements required	Medium — occasional diode or power board replacement
Safety	Overheat and auto-shutoff protection	Basic current regulation only
Price	€12,950	€18,000–€25,000+

AR QUAD-WAVE MD TREATMENT GUIDE

The AR Quad-Wave MD uses four therapeutic wavelengths — Blue (415–465 nm), Yellow (~590 nm), Red (630–650 nm), and Near-Infrared (810–850 nm) — to deliver safe, non-invasive light therapy for skin, muscle, and cellular rejuvenation. Each wavelength targets a different tissue depth and biological process, from antibacterial blue light to deep-penetrating infrared energy. Treatments can be used individually or combined to enhance recovery, anti-aging, and aesthetic outcomes.

Swipe left to view more columns.

Treatment Goal	Wavelength (nm)	Pulsing (Hz)	Intensity (%)	Session Time (min)	Notes
Anti-Aging & Wrinkle Reduction	630–650 (Red)	0–20	80–100	10–20	Stimulates collagen and fibroblast activity
Skin Rejuvenation & Glow	590 + 630	0	80–90	10–15	Improves tone, texture, and radiance
Acne Treatment	415 + 630	0	80–100	10–15	Blue kills bacteria, red calms inflammation
Rosacea & Sensitive Skin	590	10	50–70	10–15	Soothes redness and supports microcirculation
Hyperpigmentation / Dark Spots	590 + 630	10–50	80	12–20	Reduces melanin clusters, balances tone
Scar Healing	630 + 810	0	80	15–20	Improves collagen remodelling and tissue repair
Psoriasis / Eczema	630 + 850	10–100	90	10–15	Reduces inflammation, calms skin irritation
Post-Procedure Recovery	630 + 850	10–300	80–100	15–20	Accelerates wound healing and reduces redness
Muscle Recovery	810–850	100–300	100	15–30	Deep tissue regeneration and oxygenation
Pain & Joint Relief	810–850	10–50	100	15–25	Reduces chronic pain and joint stiffness
Lymphatic Stimulation	590 + 810	50–150	80	15–25	Improves circulation and drainage
Wound Healing	630	10–100	80–100	10–15	Accelerates cell turnover and closure
Hair Regrowth	630 + 850	10–30	90	15–20	Stimulates follicles and boosts scalp circulation
Inflammation Reduction	630 + 850	100	80–100	15–20	Decreases cytokine activity and swelling
Cellular Energy (ATP Boost)	630 + 810	100–500	90–100	15–20	Enhances mitochondrial function
Fatigue & Energy Support	810 + 850	40–100	80–100	15–20	Increases circulation and vitality
Mood & Seasonal Affective Support	630	1–10	70–100	10–15	Boosts serotonin and reduces fatigue
Eye Area Rejuvenation (Low Intensity)	630	0	40–60	3–5	Improves microcirculation and tone (use caution)
